Feed Bunks

Bedrock makes J style bunks they come in 4 different sizes & styles. Our cattle, calves, and sheep bunks are steel reinforced with a welded reinforced cage. All feed bunks are flat bottom.

Goat, Sheep and Calf Bunk
20" Straight Back
24" Straight Back
24" Slant Back
Made thick to last
10' long

Special sizes can be made to complete the bunk line.

Also available ends, cable and posts, guard rail posts, weld pipe posts, adjustable pipe posts, delivery

Have a Question? Give Us a Call. 712-676-3752

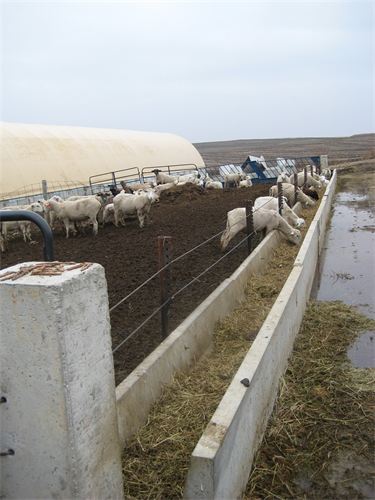

Sheep or Calf Feed Bunk

10' long x 28 wide
15" front wall height
21.5" back wall height
rebar reinforced

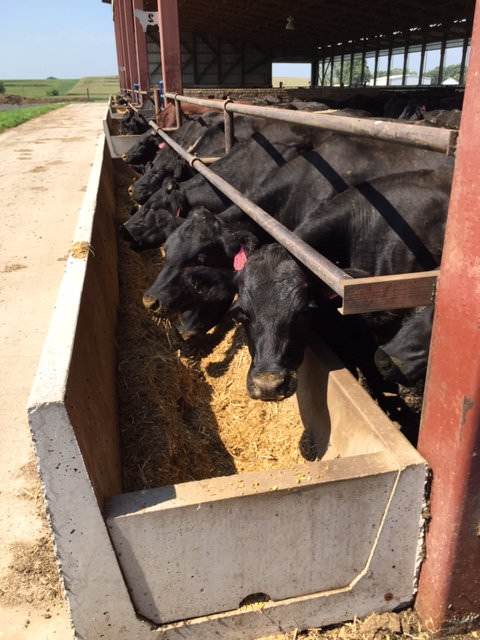

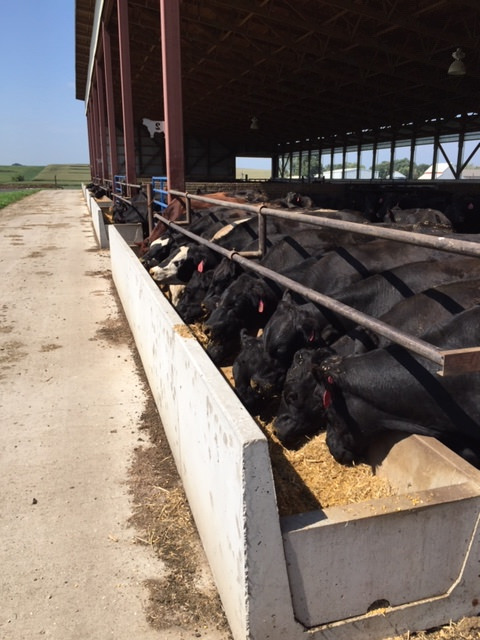

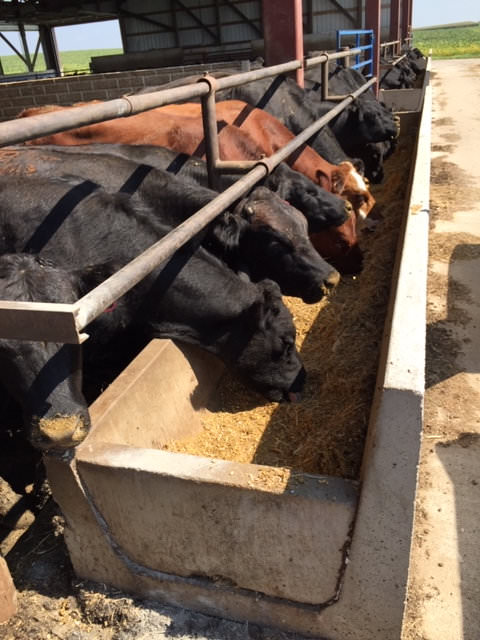

Straight Back Bunk

10' long x 36" base
front wall 19.5"
32" back wall, walls are 6" thick and taper to 3"
24" wide trough with a 5" thick base
rebar reinforced

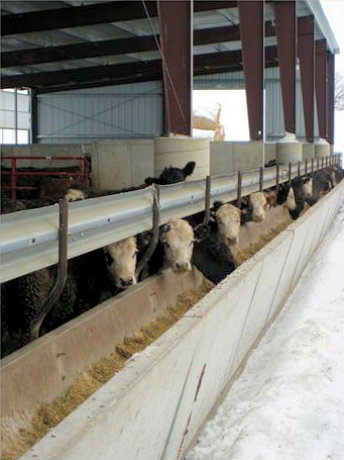

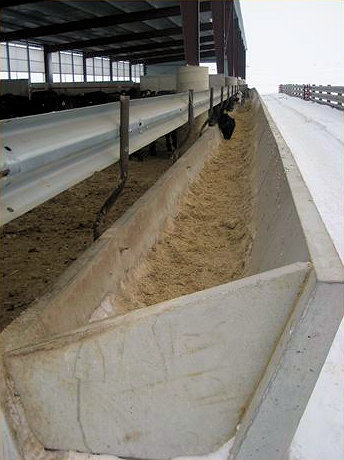

Slant Back Bunk

10' long x 36" wide base
21" front wall
35" back wall, front wall is 6.75"' thick and tapers to 3" at top
back wall is 5" thick and tapers to 3" at top
24" wide trough with a 5" thick base
rebar reinforced.

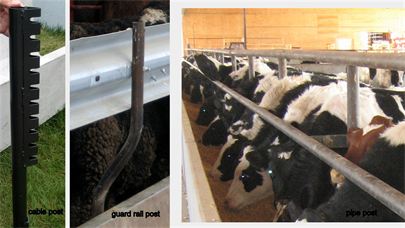

Posts

cable and posts
guard rail posts
weld pipe posts
adjustable pipe posts

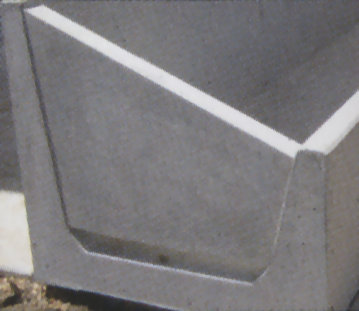

Bunk Ends

steel reinforced dry cast concrete

Livestock Waterers

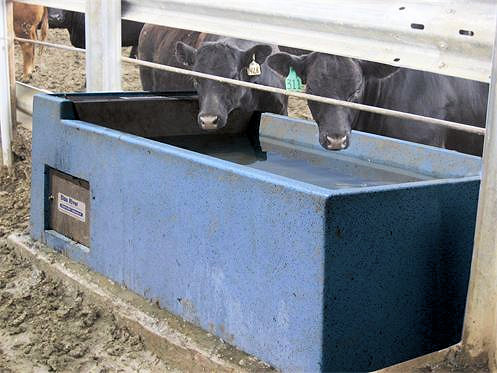

photo of livestock waterer Our associates at Blue River Manufacture excellent livestock waterers. Whether you are looking for concrete or poly tanks, we welcome the opportunity to earn your business. Visit Blue River's web site.
